Gemma 4 31B and 26B A4B: Architecture and Memory Consumption

The Weekly Kaitchup #136

Hi everyone,

In this edition of The Weekly Kaitchup, let’s discuss:

• Gemma 4

• The release of Trinity-Large-Thinking

Gemma 4

Finally, Google has released Gemma 4.

There is a lot to discuss, especially the smaller E2B and E4B models. But in this post, I want to focus on the larger variants:

Gemma 4 31B, a dense model
Gemma 4 26B A4B, an MoE

I’ll publish a deeper analysis next week, including my own benchmarks, efficiency measurements, and deployment notes. The experiments are already running.

For now, I want to look at three things: how these models are built, and how much memory they will consume on your machine.

A Zero-Risk Architecture?

I’m a bit disappointed by the lack of novelty in these models. We won’t learn much from them. They are very standard.

Gemma 4 31B is mostly an evolution of Gemma 3 27B. The MLP/nonlinearity/norm stack is very similar, while the attention stack and multimodal stack are where the small changes are.

Gemma 4 31B keeps the same 5 local: 1 global high-level pattern, but makes the global layers more specialized. The global layers feature unified Keys and Values and use Proportional RoPE (p-RoPE) for long-context efficiency.

Gemma 4 still soft-caps final logits.

About the 26B A4B: yes, it is a real sparse MoE, but not as sparse as Qwen3.5 35B, which has 512 experts. It has 8 active experts out of 128 total, plus 1 shared expert.

GPU Memory Consumption of Gemma 4 31B and 26B

If you are going to use the model without quantization, 16-bit per weight, they will consume:

• google/gemma-4-31B-it: 61 GB

• google/gemma-4-26B-A4B-it: 50 GB

Since the models are standard, we already have some quantized checkpoints available:

• nvidia/Gemma-4-31B-IT-NVFP4: 32.7 GB (very conservative quantization by NVIDIA)

• cyankiwi/gemma-4-31B-it-AWQ-4bit: 20.5 GB

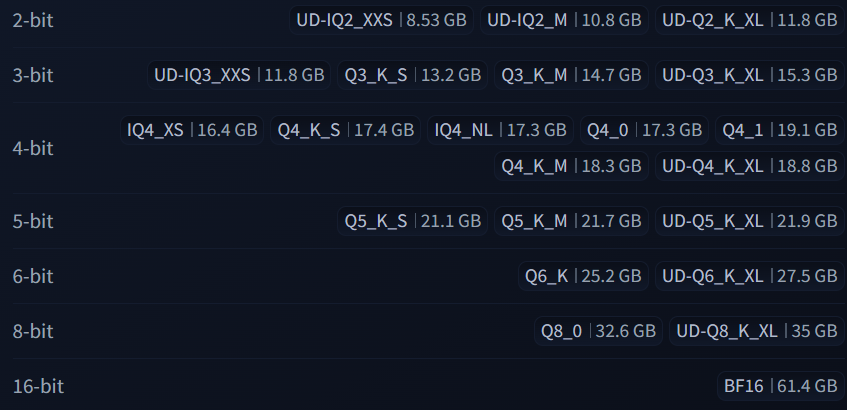

• unsloth/gemma-4-31B-it-GGUF



• cyankiwi/gemma-4-26B-A4B-it-AWQ-4bit: 17.2 GB

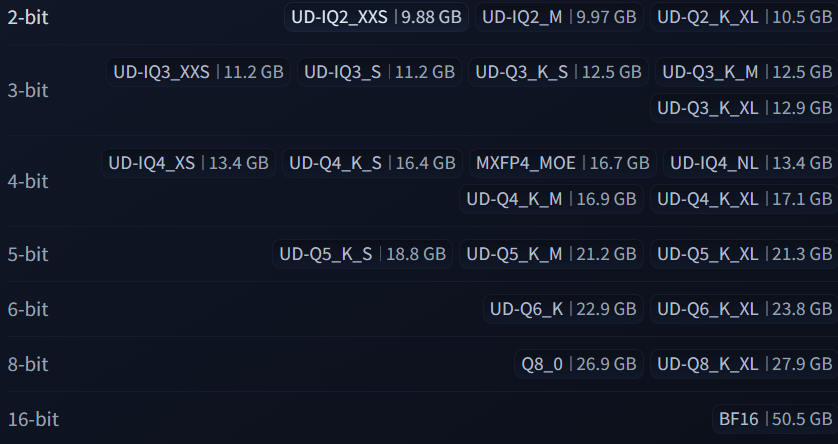

• unsloth/gemma-4-26B-A4B-it-GGUF



I’ll evaluate them all, with a subsample of the GGUFs version from different providers.

The relevant config values to do the KV cache math (at max context length) are:

• 31B:

  • max_position_embeddings=262144

  • num_hidden_layers=60

  • num_key_value_heads=16

  • head_dim=256

  • num_global_key_value_heads=4

  • global_head_dim=512

  • sliding_window=1024, with a 5-local / 1-global pattern in layer_types (so 50 sliding layers and 10 full layers)

• 26B-A4B:

  • max_position_embeddings=262144

  • num_hidden_layers=30

  • num_key_value_heads=8

  • head_dim=256

  • num_global_key_value_heads=2

  • global_head_dim=512

  • sliding_window=1024, again 5-local / 1-global (so 25 sliding layers and 5 full layers)

Like for Qwen3.5, we can see that the MoE will consume much less memory: fewer KV heads and fewer layers, while they both have the same head dimensions.

\(\text{KV bytes} = \sum_{\ell} 2 \times T_\ell \times H^{(\ell)}_{kv} \times D^{(\ell)}_{head} \times \text{bytes}\)

For sliding layers, the sliding-window cache only keeps min(max_cache_len, sliding_window) tokens.

So the per-layer bf16 storage works out to:

• 31B sliding layer:

  \(2 \times 1024 \times 16 \times 256 \times 2\)

  over the whole window, or 16,384 bytes per token per layer.

• 31B full layer:

  \(2 \times 262144 \times 4 \times 512 \times 2\)

  over the whole context, or 8,192 bytes per token per layer. Gemma 4 full-attention layers use global_head_dim and num_global_key_value_heads.

• 26B sliding layer: 8,192 bytes per token per layer.

• 26B full layer: 4,096 bytes per token per layer.

That gives these steady-state, sliding-window-aware totals at max context:

• Gemma 4 31B
  10×262144×8192+50×1024×16384
  = 22,313,697,280 bytes = 20.78 GiB.

• Gemma 4 26B-A4B
  5×262144×4096+25×1024×8192
  = 5,578,424,320 bytes = 5.20 GiB.

So the 31B’s KV cache consumes 25% more memory than Qwen3.5 27B, while the 26B consumes slightly less memory than Qwen3.5 35B.

Gemma 4: Weights + KV cache

With the original model, not quantized, you will need a 96 GB (e.g., RTX Pro 6000) to fit a full sequence for Gemma 4 31B. For the same memory, you should be able to run 8 or 9 concurrent queries for the 26B.

Quantized to 4-bit, as Unsloth Q4 or cyankiwi’s AWQ, the 31B consumes between 17 and 20 GB, i.e., the full context KV cache dominates memory consumption. If you quantize it to 8-bit, it’ll fit on a 32 GB GPU, otherwise, depending on the 4-bit variants you choose, it will consume between 37 and 40 GB.

Under one apples-to-apples assumption set, batch 1, bf16 weights, bf16 cache, max text context = 262,144, and ignoring allocator / runtime overhead, Qwen3.5-27B comes out noticeably lighter than Gemma 4 31B. Using the released checkpoint sizes plus the long-context cache math, you get roughly:

• Qwen3.5-27B: ~67.8 GiB

• Gemma 4 31B: ~79.1 GiB

So Gemma 4 31B is about 11.3 GiB heavier at full context on these assumptions.

Full analysis next week!

---

Trinity-Large-Thinking was released by Arcee.

• arcee-ai/Trinity-Large-Thinking

The main change from Trinity-Large-Preview is that the model now uses a “thinking” stage before answering, with the goal of improving multi-turn tool use, context coherence, instruction following, and stability in long agent runs.

It’s a sparse MoE model with 400B total parameters and 13B active parameters per token.

• 60 transformer layers, with the first 6 as dense layers

• model dimension 3072, FFN intermediate dimension 12288

• 48 attention heads, 8 KV heads

• 128 head dimension, 256 routed experts, 1 shared expert, and top-4 expert activation per token

No MLA, no DSA, no hybrid architecture. To limit the KV cache size, it relies on a repeated 3:1 local/global attention pattern, sliding-window attention (4096 tokens) in local layers, without positional embeddings in global layers.

For KV-cache math, we have:

K+V bytes per token per layer = 2 × n_kv_heads × head_dim × bytes_per_value
= 2 × 8 × 128 × 2 = 4096 bytes

That is 4 KiB per token per layer. Trinity has 5 local sliding-window layers and 15 global layers. For the local layers, only the 4096-token window has to be kept. For the global layers, the full 262,144-token context has to be kept. So the total per-sequence KV cache at max context is:

KV total = 2 × bytes × n_kv_heads × head_dim × (L_global × T + L_local × W)
= 2 × 2 × 8 × 128 × (15 × 262,144 + 45 × 4,096)
= 16,861,102,080 bytes = 15.703125 GiB

So the practical summary is: 1 GiB per global layer, 16 MiB per local layer, 15.70 GiB total per sequence at 256K in bf16/fp16. If all 60 layers were full attention, the same model would need 60 GiB of KV cache, so the sliding-window pattern cuts the KV-cache requirement by about 74%. This is roughly the same kv cache size as Qwen3.5 27B.

Qwen3.5 Medium Models: Dense vs. MoE

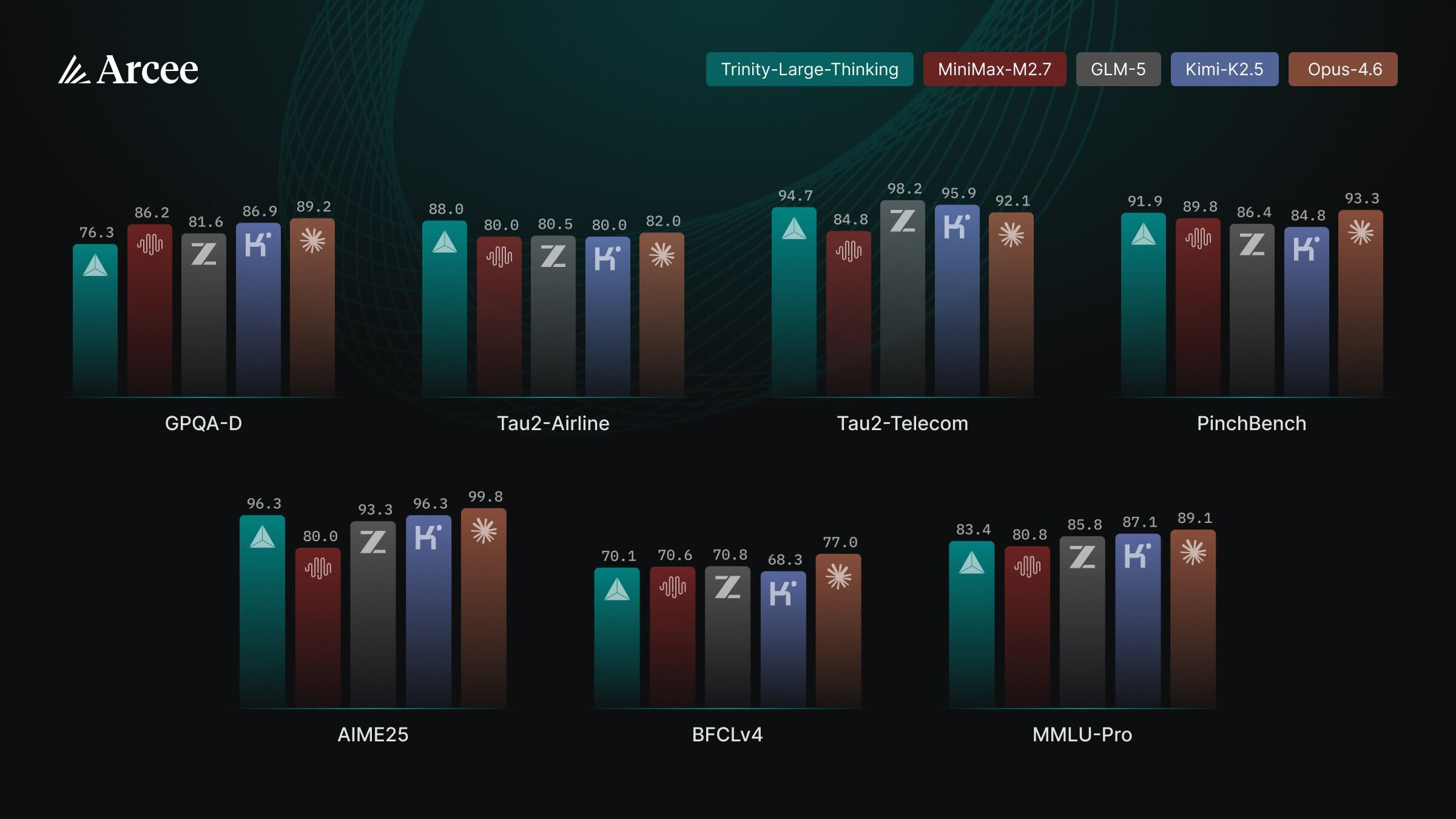

They didn’t directly compare the model to Qwen3.5 397B, even though they are of similar size.

---

The Salt

The Salt is my other newsletter that takes a more scientific approach. In The Salt, I primarily feature short reviews of recent papers (for free), detailed analyses of noteworthy publications, and articles centered on LLM evaluation.

This week, we reviewed:

Memory Sparse Attention to Get to 100 Million Tokens in Context

• ⭐Why Does Self-Distillation (Sometimes) Degrade the Reasoning Capability of LLMs?

• MSA: Memory Sparse Attention for Efficient End-to-End Memory Model Scaling to 100M Tokens

---

That’s all for this week.
